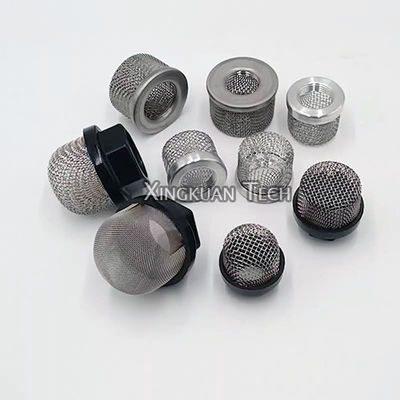

Airless Paint Sprayer Wire Mesh Filter Screen Pump Suction Inlet Strainer

Pump suction inlet strainer mesh screen for airless paint sprayer

Quick details & specifications :

• Materials:stainless steel wire + nylon cap , stainless steel wire mesh + ss cap , etc

• Technique:slitting , punching , injection molding ,etc

• Layers: single layer; double layers , etc

• connection : NylonThread or stainless steel

• Size :Fabricated – custom sized to meet requirement

 Below is only parts of specifications  , any customerized request is available :

 Example size :

• Inlet suction filter for Magnum pumps and others. Made from high quality stainless steel wire mesh. Cap with 3/4” graden hose thread. 35 mesh. Approx. 6cm height, 5cm diameter
• Inlet suction filter fits for pumps. Made from high quality stainless steel wire mesh. Cap with 1-5/16” thread. Single mesh of 10. Approx. 7cm height, 6 cm diameter
• Inlet suction filter fits pumps. Nylon cap with 3/4” UNF thread. Singlescreen of 16 stainless steel mesh. Approx. 4 cm height, 4 cm diameter
• Inlet suction filter.Nylon cap with 7/8” UNF thread. Single 16 mesh. Approx. 4 cm height, 4 cm diameter

Example size :

• Inlet filter for suction hose. Stainless steel cap with NTP 1/2” thread. Double screen of 8 and 16 mesh.
• Inlet / Suction filter fit with 3/4" NTP thread. Double stainless steel mesh screen of 8 and 16 mesh.
• Inlet / Suction filter fit with 1" NTP thread. Double stainless steel mesh screen of 8 and 16 mesh.
• Inlet / Suction filter fit with 1" NTP thread. Single stainless steel mesh screen of 8 mesh.

Descriptions :
The Suction Series Strainer promotes a compact design with multiple configurations to fit the exact end use application. The Standard Suction Strainer has a molded PVC Body and 304 Stainless Screen. A Black Nylon Body with 304 Stainless Screen is available. PVC Suction Strainers have a Female Friction Fit and are called out according to the size of a Female NPT fitting. Nylon Suction Strainers have a true threaded Female NPT connection.
Applications:

Suction strainer elements are only intended to protect hydraulic pumps against catastrophic failure caused by coarse contaminants. Suction strainer elements should be inspected and cleaned regularly. Suction strainer elements should not be used as the only filtration elements in a hydraulic system. Pressure filters and return line filters, with reasonable dirt holding capacity, must be installed to provide protection against component damage caused by fine contaminants.

Notice :

1. Own a large different size of dies /Mold , save cost for you .
2. Free sample in standard size is available
3. Any customerized shape or special request is always avilable .
4. Drawings or item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

• Material
• Thread
• Dia , height
• More details as request
