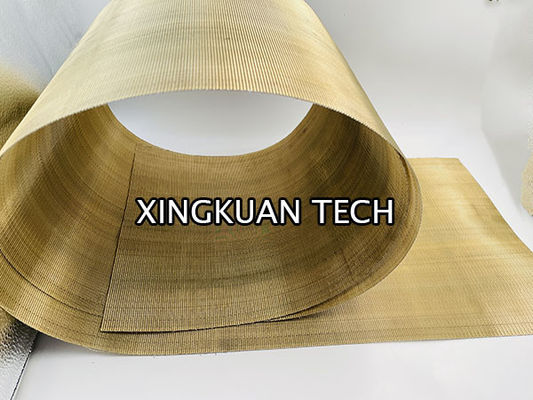

Reverse Dutch Woven Wire Mesh Screen Copper Clad Steel For Auto Screen Changer RDW

Copper clad steel reverse dutch wire mesh screen for auto screen changer (RDW)

Quick details & specifications :

• Material : Copper clad steel wir , galvanized wire
• Wire material type : round wire or flat wire
• Material characters :.High Tensile Warp Copper Coated Carbon Steel wire for Auto-Screen Changers used in Plastic and Rubber Extrusion industry. The Copper coated Carbon Steel Warp wire’s tensile is 1500Mpa -2000Mpa.
• Edge :common closed edge
• Weaving pattern : Reverse dutch wire mesh ( plain reverse )
• Mesh: reverse dutch - 110x10,110x13,110x15,110x16,110x17 etc(we also do dutch in coppper clad steel , example -14x88 ,30x150 mesh )
• Roll Width :228mm,229mm,308mm,309mm,400mm ,etc
• Roll length :30m,50m,80m,100m ,etc

Below  is only parts of standard size , cstomerized is also available .

Descriptions :

Reverse dutch wire mesh is also known as extruder filter screen, Auto filter belt and contiuous filter belt . High Tensile Warp wire for Auto-Screen changers mainly is used in the Plastic Extrusion Industry. Reverse dutch  is one of weaving pattern for stainless steel weaving method . Reverse dutch wire use different wire tickness for warp wire and weft wire , so it  is also dutch wire mesh patteren .But due to the weft wire is thicker than warp wire , so it is called reverse dutch wire mesh .  .

1.Reverse dutch plain wire mesh(RPD) :

The Reverse Plain Dutch Weave makes use of two different sizes of wires in weaving. The smaller wires are warped against a large shute wire and woven as closely as possible to create a finer and tight mesh cloth. The larger wire is used to strengthen and support the whole mesh.

 2.Reverse dutch twill wire mesh (TRD):

      The Twilled Reverse Dutch Weave on the other hand makes use of the Plain Dutch and twill weaving to create a fine mesh cloth. The fine wires are tightly woven together making this ideal for filtration of gas and other liquid applications.

Applications:

the prodcution is mainly applied to

• Commonly used in Auto Screen Changers used in the plastic extrusion industry.
• Apply to Austria Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, cast film machine, coating machine
• Used for aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientific research, transportation, and other industries.
• Filters -inside as media .

Notice :

1. Own a large stock for standard size , save time and cost for you .
2. Free sample in standard size is available
3. Any customerized special request is always avilable .
4. Item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

1.Material

2. Mesh

3. roll length and width

4. any special request : packing , delivery time , etc .
