Product Details:
Payment & Shipping Terms:
|
| Item: | 316L Stainless Steel Mesh 400 Mesh High-density Mesh,small Opening Industrial Screen | Material: | 304,304A,304L,316,316L,310s ,2205 ,etc |
|---|---|---|---|
| Pattern: | Twill | Edge: | Open |
| Roll Width: | 0.6m,1m ,1.22m ,,, Upto6m | Roll Length: | Standard Is 100 Ft Or 30m |
| Highlight: | Industrial 316L Stainless Steel Mesh,400 Mesh Woven Wire Screen,High Density Woven Wire Mesh Screen |
||

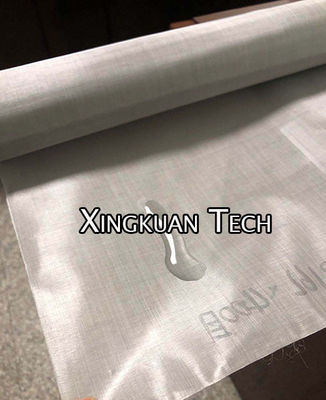

316L stainless steel mesh 400 mesh high-density mesh,small opening industrial screen
Descriptions :
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
12.0-15.0
|
16.0-18.0
|
2.0-3.0
|
Wire mesh size is not only assigned a mesh number, but also denominated in microns. Mesh size means the number of openings per inch. But micron tells us the nominal opening size, and they can convert to each other.
| Mesh/lnch (mesh) | Wire Diameter (mm) |
Aperture (mm) | Mesh/lnch (mesh) | Wire Diameter (mm) |
Aperture (mm) | |||
| 100 | 0.14 | 0.114 | 325 | 0.035 | 0.0443 | |||
| 120 | 0.1 | 0.111 | 350 | 0.032 | 0.0405 | |||
| 150 | 0.09 | 0.079 | 400 | 0.03 | 0.0335 | |||
| 180 | 0.07 | 0.071 | 450 | 0.026 | 0.0304 | |||
| 200 | 0.06 | 0.067 | 500 | 0.025 | 0.0258 | |||
| 250 | 0.045 | 0.0566 | 600 | 0.018 | 0.0243 | |||
| 300 | 0.04 | 0.0446 | 635 | 0.018 | 0.022 | |||
Applications:
1. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen filter in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used in air conditioners, purifiers, range hoods, air filters, dehumidifiers, and dust collectors, etc., suitable for variousfiltration, dust removal and separation requirements.
Notice :
Please offer below datas for the inquiry :
1.Material
2. Mesh & wire diameter
3. roll length and width
4. any special request : packing , delivery time , etc .
